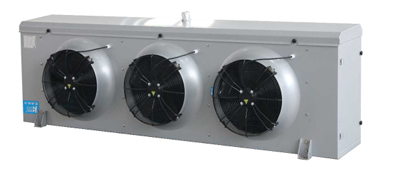

A commercial ethylene glycol ceiling air cooler suitable for small and medium-sized cold storage, using ethylene glycol aqueous solution as refrigerant

Overview of EHG series commercial ethylene glycol ceiling air cooler products

   The EHG series commercial ethylene glycol air coolers developed by our company mainly use copper tubes of size 12 and are cold storage cooling equipment with ethylene glycol aqueous solution as the refrigerant. The EHG series of air coolers can meet the needs of cold storage at around 10 ℃, 0 ℃, and -18 ℃, mainly for small and medium-sized cold storage.
1. Shell: Made of high-quality galvanized steel plate surface spray painted (silver gray RAL9006), with strong anti-corrosion performance; The two side panels and the outer water tray panel adopt a hinged structure, which is easy and fast to operate;
2. The end plate of the heat exchanger is made of aluminum plate, which effectively protects the copper tube and reduces weight;
3. Double layer water tray design: The outer water tray adopts an angular structure with angles, ensuring smooth drainage and no dead corners; The inner water tray adopts an aluminum plate sink type structure for condensation water
Or defrosting water can be directly discharged into the drainage outlet of the outer water tray through the inner water tray;
4. The high air duct design adopts a large circular arc with overall stretching, which has good air guiding effect;
5. For fans with a diameter of 500, there are floor support feet installed for easy installation;
6. Coil: arranged in a triangular pattern with a spacing of 38.1x33 between tubes, resulting in high heat transfer efficiency;
7. Hydrophilic aluminum foil corrugated aluminum sheet with sheet spacing of 4.0mm and 6.0mm, meeting different temperature and humidity requirements;
8. Fan: High power external rotor fan, operating temperature -30 ℃~60 ℃; Fan specifications include 350, 400 Ф500, Form product lines of different specifications,
Users have more choices;
9. Defrosting: The standard uses electric defrosting, with stainless steel heating tubes evenly distributed in the fins of the coil and on the inner water plate, resulting in good defrosting effect;
10. The fan and heating tube adopt independent IP65 waterproof junction boxes, which have better waterproof effect and high reliability in use;
11. Strict pressure test, with a test pressure of 23 bar;
